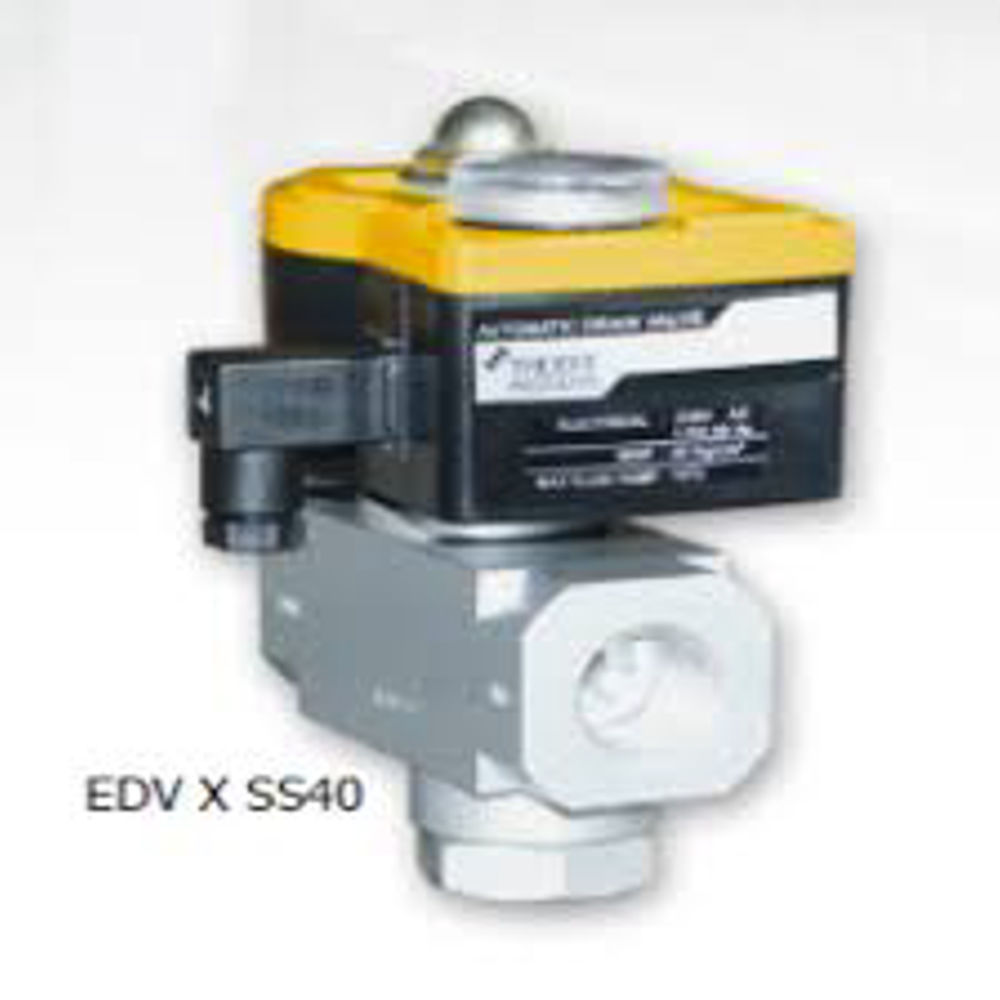

Trident Series EDV Auto Drain Valve EDV-x-SS40

Price 7281 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Trident Series EDV Auto Drain Valve EDV-x-SS40 Specification

Material
SS316 Stainless Steel Body

Features
Digital Timer, Manual Test Switch, LED Indication, Compact Design, Rust Proof, Maintenance-Free

Connection Type
Screw Connection

Valve Type
Automatic Drain Valve

Control System
Microcontroller Based Timer

Valve Size
1/2 Inch

Structure
Solenoid Operated Valve

Voltage
230V

Sealing
Viton Seals

Application
Compressed Air Systems, Drain Automation

Type
Electronic Drain Valve

Power
230V AC

Pressure
016 bar

Media
Air, Water, Oil

Port Size
1/2 Inch BSP

Temperature
Up to 80C

Disc
Stainless Steel

Pin
2 Pin Connection

Timer Cycle (ON/OFF)
ON: 0.510 Sec / OFF: 145 Min adjustable

Body Finish
Electropolished

Enclosure Protection
IP65

Flow Rate
Up to 6000 l/h

Testing
Manual Override Push Button

Drain Orifice
4mm

Indicator
LED Status

Mounting
Inline/Direct

Operating Frequency
50/60 Hz

Maximum Fluid Temperature
80C

Trident Series EDV Auto Drain Valve EDV-x-SS40 Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
2 Pieces Per Day

Delivery Time
01 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
Gujarat, Karnataka, Kerala, Bihar, Goa, All India, South India, Central India, Punjab, Delhi, Haryana, Maharashtra, Uttarakhand

About Trident Series EDV Auto Drain Valve EDV-x-SS40

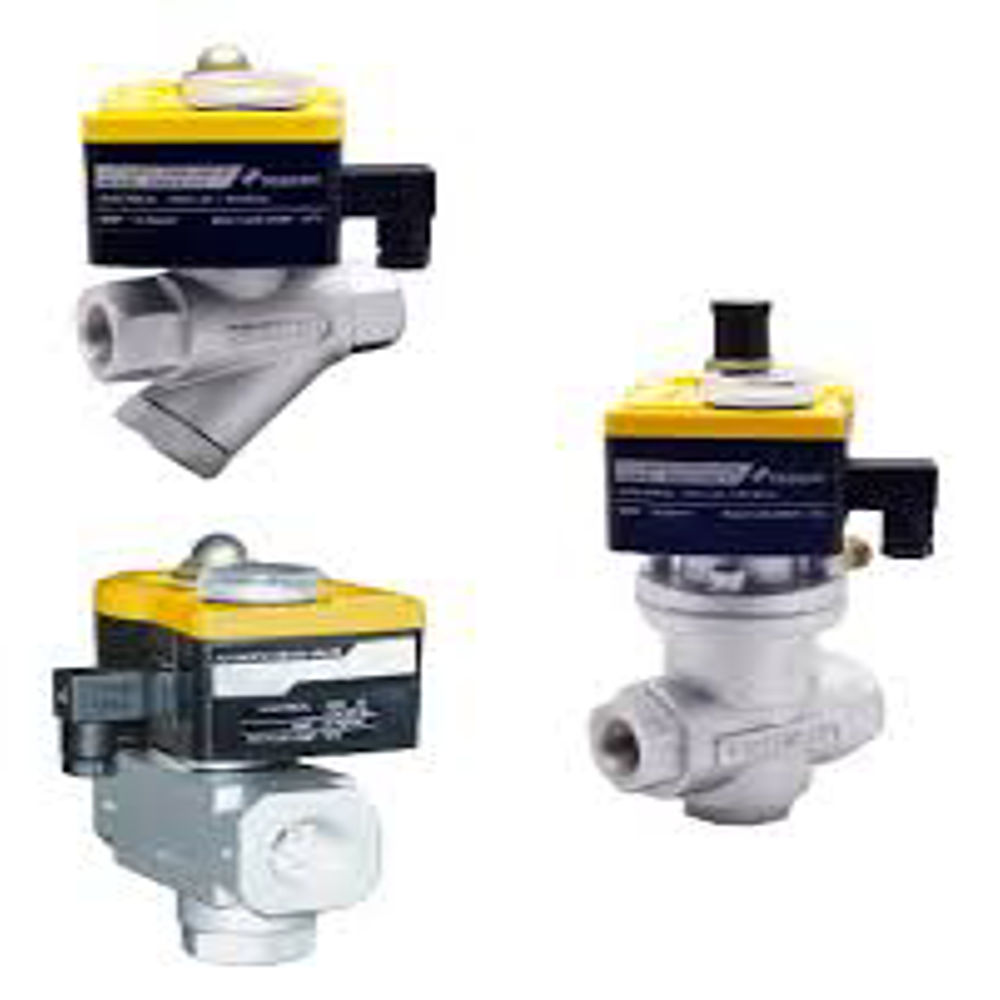

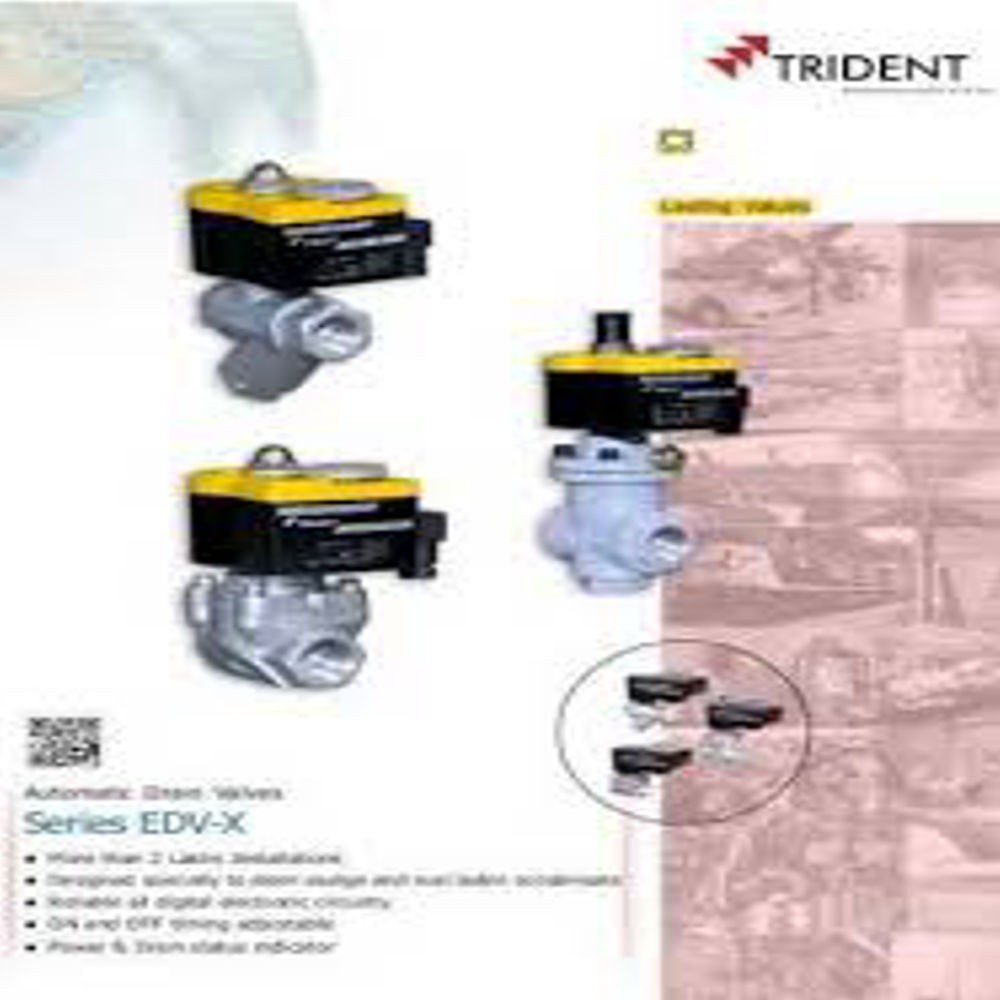

The Trident EDV-X-SS40 is a timer-based automatic drain valve designed to efficiently remove condensate from compressed air systems, particularly in applications where sludge and rust-laden condensate are prevalent. This model is part of Tridents EDV-X series, known for its reliable all-digital electronic circuitry and adjustable timing features.

Digital Timer for Customizable Drain Cycles

The EDV-x-SS40 includes a microcontroller-based digital timer, enabling you to adjust the ON cycle between 0.510 seconds and the OFF cycle from 145 minutes. This flexibility ensures automatic drainage suited to various operating conditions, reducing the risk of blockages and improving overall system efficiency.

High-Performance Stainless Steel Construction

Made with SS316 grade stainless steel, the valve guarantees durability and resistance to corrosion. Its electropolished surface and Viton seals support use in harsh or humid environments, safeguarding against rust while delivering maintenance-free operation for long-term reliability.

Simple Installation and User-Friendly Operation

With inline or direct mounting options and a screw connection type, the valve allows for quick, secure installation into your system. The LED status indicator and manual test switch provide easy monitoring and immediate testing, streamlining routine checks and troubleshooting.

FAQs of Trident Series EDV Auto Drain Valve EDV-x-SS40:

Q: How do I adjust the timer cycle on the Trident EDV-x-SS40 auto drain valve?

A: The timer cycle can be adjusted using the digital timer controls. You can set the ON time between 0.5 and 10 seconds, and the OFF time between 1 and 45 minutes, allowing you to tailor the drainage frequency to your systems needs.

Q: What media can the EDV-x-SS40 handle, and what is its maximum fluid temperature?

A: The valve is compatible with air, water, and oil applications, and it can operate with fluids at temperatures up to 80C, making it suitable for a wide range of drainage systems.

Q: When should I use the manual override push button on this valve?

A: You can use the manual override push button for immediate testing or manual operation, especially during routine maintenance or troubleshooting to confirm valve functionality.

Q: Where can I install the EDV-x-SS40, and what mounting options are available?

A: This automatic drain valve can be installed either inline or directly into your compressed air system, thanks to its flexible mounting design and 1/2 inch BSP port size.

Q: What are the benefits of the LED status indicator?

A: The built-in LED indicator provides visual feedback of the valves operational status, making it easy to monitor the drain process and quickly spot potential issues.

Q: Is the EDV-x-SS40 suitable for outdoor or demanding environments?

A: Yes, its IP65-rated enclosure protection and SS316 stainless steel body ensure reliable operation even in humid, dusty, or corrosive environments.

Q: How does using the Trident EDV-x-SS40 improve my drainage process?

A: The automatic digital timer automates regular drainage, prevents manual intervention, reduces downtime, and helps maintain optimal system performance with minimal maintenance.
